Yamaha DT230 LANZA Specification

Yamaha DT230 Lanza Specs

Engine

Type:

Liquid Cooled 2 Stroke Reed Valve Straight Single

Bore x Stroke:

66.8×64.0mm

Carburation:

TM30x1 / MIKUNI / 4TP00

Compression Ratio:

06.05.01

Displacement:

224 cc

Starting:

Electric

Transmission

Chain Number of Links:

132

Chain type:

428

Final Drive:

Chain and Sprockets

Transmission:

6 Speed

Misc.

Frame:

Chrome-moly Steel Tube

Motorcycle Style:

ENDURO ROAD/TRAIL

Suspension

Rear:

Monoshock

Tyres

Front:

300-21 Tubed

Rear:

460-18 Tubed

2 Stroke Tank - Litres:

01.03

Fork oil grade:

10W

Front Fork Oil cc (left leg):

542

Front Fork Oil cc (right leg):

542

Gearbox Oil grade:

SAE 10W30 SE

Gearbox Oil Litres:

0,059027778

Idle Speed (rpm):

1300-1400 rpm

Spark Plugs Gap (mm):

0.7-8 mm

Tyre Pressure Back Bar / psi:

1.50 kg/cm

Tyre Pressure Front Bar / psi:

1.25 kg/cm

Brakes

Front:

Disc

Rear:

Disc

Dimensions

Dry Weight:

121 kilos

Fuel Capacity:

11 litres

Ground Clearance:

300 mm

Height:

1200 mm

Length:

2225 mm

Seat Height:

865 mm

Wheelbase:

1410 mm

Width:

800 mm

Electrics

Voltage:

12v

Battery:

GT6B-3 6AH

Ignition:

CDI

Spark Plugs:

NGK BR9ES

Spark Plugs (Iridium):

NGK BR9EIX

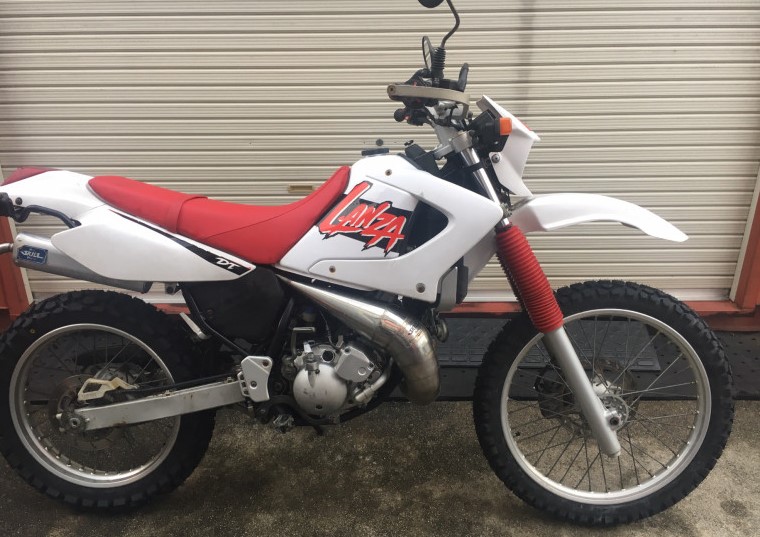

Yamaha DT230 LANZA Was Designed for the Japanese market, where people mostly avoid bike with larger chassis models and high seat height, this lightweight and compact dirt track bike model was launched in 1997.

224cc single-cylinder 2-Stroke engine is equipped with a traction control system, a redesigned frame, front and rear suspension, which combines damping performance with ease to reach feet on the ground, and a multi-functional digital dashboard.

It was full of performance and features to increase the fun of riding and using the machine. The display version of the 1998 model with aluminum stone swing and Yamaha Computerized Lubricant System (YCLS), which controls the amount of lubricant used by the engine.
