Yamaha LT2/LT3 Specification

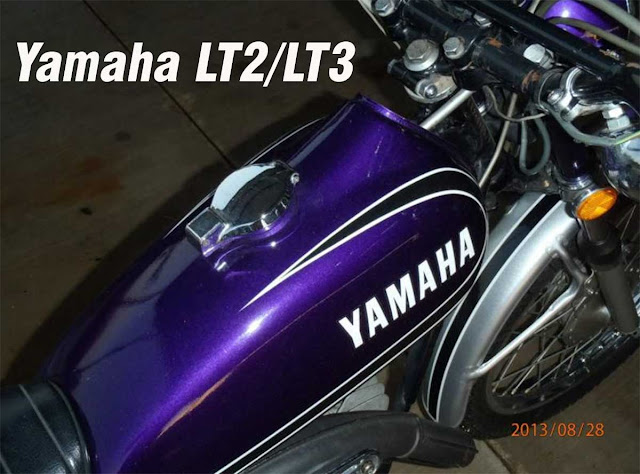

Yamaha LT2/LT3


The Yamaha LT2/LT3 Was one of the Yamaha 90 cc Dirt Bikes, And the first Production of this Bike was close enough With Yamaha HT1/HT2 In the very early 1970's. Yamaha LT2/LT3 Has 97 cc 2-Stroke Engine, That Produce Maximum Power 16 HP @ 10500 RPM.

Yamaha LT2/LT3 Specification
Yamaha LT2/LT3 Specification



Yamaha LT2/LT3 Specification


And the detailed of the Yamaha LT2/LT3 Specification, Served in the Table Below.

Yamaha LT2/LT3 Specification

Year Production

1972-73

Frame/Engine Prefix (XXX-000101)

LT2

Bore (mm)

52

Stroke (mm)

45.6

Capacity (cc)

97

Compression Ratio (to 1)

6.9/7.8

Bhp @ rpm

10 @ 7,500/16 @ 10,500

Torque (kgm) @ rpm

0.97 @ 7,000/

1.12 @ 9,500

Oil System

Autolube

Engine Cooling

Air

Carburetor (mm)

VM20SC/VM26SH

Ignition System

Magneto

Ignition Timing (mm)

1.8/2.0

Primary drive gearing

3.9

Final Drive Gearing

49/14 / 52/14

Box Gearing first

3.18 / 2,83

Box Gearing second

2.0 / 1.88

Box Gearing third

1.37

Box Gearing fourth

1.0 / 1.09

Box Gearing fifth

0.8 / 0.96

Box Gearing sixth

-

Fuel Cap. (liters)

6

Engine Oil Cap. (liters)

1.23

Gearbox Oil Cap. (Liters)

0.70

Fork Oil Ca. (cc/leg)

136

Front Tire (stock)

2.75 X 18 / 2.75 X 19

Rear Tire (stock)

3.00 x 18

Front Brake

Drum

Rear Brake

Drum

Rear Suspension

Twin shock

Front Susp. Travel (mm)


Rear Susp. Travel (mm)


Rake (degrees)


Trail (mm)


Width (mm)

800

Ground Clearance (mm)

220

Wheelbase (mm)

1,240/1,255

Dry Weight (kg)

85



Yamaha LT2/LT3 Specification Purple

Yamaha LT2/LT3 Specification Purple
