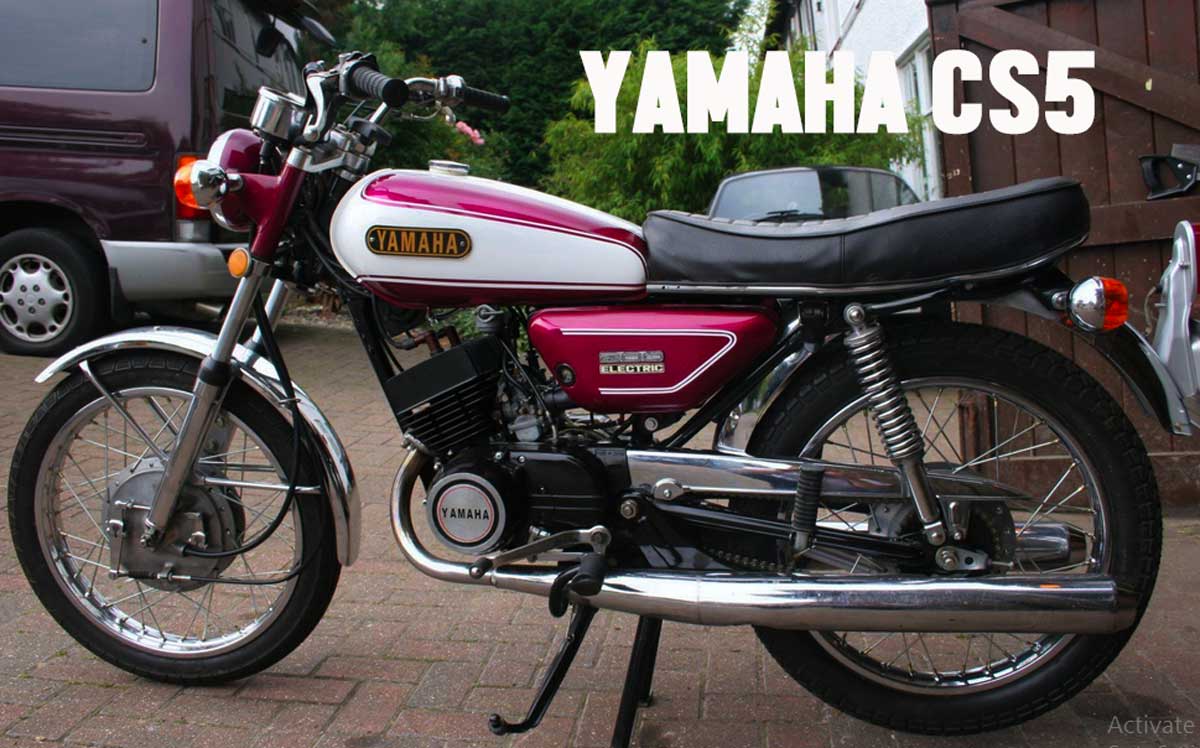

Yamaha CS5 200 Motorcycle
Yamaha CS5 200 Motorcycle
The Yamaha CS5 is a Naked bike model that is manufactured by Yamaha Motor and
it's sold in the market starts from 1972.
Yamaha CS5 Has 117.0 kg (257.9 pounds) Dry weight and it is equipped with a Twin, two-stroke Engine. The engine gains a maximum peak output power of 22.00 HP (16.1 kW) @ 7500 RPM and a max torque of 21.28 Nm (2.2 kgf-m or 15.7 ft.lbs) @ 7000 RPM .
Yamaha CS5 Has 117.0 kg (257.9 pounds) Dry weight and it is equipped with a Twin, two-stroke Engine. The engine gains a maximum peak output power of 22.00 HP (16.1 kW) @ 7500 RPM and a max torque of 21.28 Nm (2.2 kgf-m or 15.7 ft.lbs) @ 7000 RPM .
With This Engine Features, the Yamaha CS5 can reach a maximum top speed that is 135.0 km/h (83.9 mph) . Yamaha CS5 has a Steel tubing diamond structure frame with front suspension being Telescopic fork and at the rear.
That type of chassis characteristics, Yamaha CS5 responsible for road holding, handling behavior and the comfortable ride.
READ ALSO : Yamaha CS3 200 Motorcycle
Yamaha CS5 Stock Font tire sizes are 3/18-4PR, and the rear tire is 3/18-4PR. As for stopping power, the Yamaha CS5 braking system includes Expanding brake (drum brake) in the front and rear.
Yamaha CS5 Stock Font tire sizes are 3/18-4PR, and the rear tire is 3/18-4PR. As for stopping power, the Yamaha CS5 braking system includes Expanding brake (drum brake) in the front and rear.
Yamaha CS5 Motorcycle Specification
| Yamaha CS5 200 Specification | |
|---|---|
| Year: | 1972 |
| Category: | Naked bike |
| Price as new: | US$ 649. MSRP depend on country, taxes, accessories, etc. |
| Rating: | 2.9 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement: | 195.0 ccm (11.90 cubic inches) |
| Engine type: | Twin, two-stroke |
| Power: | 22.0 HP (16.1 kW)) @ 7500 RPM |
| Torque: | 21.3 Nm (2.2 kgf-m or 15.7 ft.lbs) @ 7000 RPM |
| Top speed: | 135.0 km/h (83.9 mph) |
| 1/4 mile (0.4 km): | 16.00 seconds |
| Compression: | 7.1:1 |
| Bore x stroke: | 52.0 x 46.0 mm (2.0 x 1.8 inches) |
| Valves per cylinder: | 5 |
| Fuel system: | Carburettor. VM20SC x 2 |
| Fuel control: | Port control |
| Ignition: | Battery |
| Lubrication system: | Seperate Lubrication |
| Gearbox: | 5-speed |
| Transmission type, final drive: |
Chain |
| Clutch: | Multi-disc, Wet |
| Fuel consumption: | 2.85 litres/100 km (35.1 km/l or 82.53 mpg) |
| Greenhouse gases: | 66.1 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Frame type: | Steel tubing, diamond structure |
| Rake (fork angle): | 62.5° |
| Trail: | 95 mm (3.7 inches) |
| Front suspension: | Telescopic fork |
| Rear suspension: | Swing arm |
| Front tyre: | 3/18-4PR |
| Rear tyre: | 3/18-4PR |
| Front brakes: | Expanding brake (drum brake). Right hand operation, cable actuated |
| Rear brakes: | Expanding brake (drum brake). Right foot operation, rod actuated |
| Physical measures and capacities | |
| Dry weight: | 117.0 kg (257.9 pounds) |
| Power/weight ratio: | 0.1880 HP/kg |
| Overall height: | 1035 mm (40.7 inches) |
| Overall length: | 1935 mm (76.2 inches) |
| Overall width: | 835 mm (32.9 inches) |
| Ground clearance: | 155 mm (6.1 inches) |
| Wheelbase: | 1245 mm (49.0 inches) |
| Fuel capacity: | 9.00 litres (2.38 gallons) |
| Oil capacity: | 1.90 litres (0.13 quarts) |
