Yamaha Grizzly 600 ATV Specification

Yamaha Grizzly 600


Yamaha Grizzly 600 was born as an ATV, Produced from 1998-2001 (3 years) in US. it has 4 Stroke 600cc Engine that is adopted from Yamaha XT600. Yes, XT600 Was one of Yamaha 600cc Bike that can be used whether on the street road and on the Off road.

Yamaha Grizzly 600
Yamaha Grizzly 600


And it make sense that Yamaha Grizzly was kind of fit for people who needs powerful, tough and endurance ATV to beat the rough off road. Later, Yamaha Grizzly 600 will be replaced by New Grizzly 660 that has Basic engine From Yamaha Raptor the more information about Yamaha Grizzly 600 Specification will be shown below.


Yamaha Grizzly 600 Specification


In the table below will be shown the detailed Specs of Yamaha Grizzly 600 Like the power, fuel capacity, fuel consumption, Top speed, Value and etc.

  • Manufacturer        : Yamaha
  • Model                    : 1998 Grizzly
  • Price                      : $6,499
  • Engine                   : air/oil-cooled, sohc, four-stroke single
  • Bore and Stroke     : 95 x 84mm
  • Displacement        : 595cc
  • Carburetion            : Mikuni BST 40mm
  • Transmission          : V-Belt Ultramatic
  • Wheelbase              : 49.4 in.
  • Overall Width        : 45.7 in.
  • Overall Length       : 81.9 in.
  • Seat Height            : 34.1 in.
  • Fuel Capacity          : 5.1 gal.
  • Dry Weight              : 639 lbs


Yamaha Grizzly 600 Video




Yamaha Grizzly 600 Parts

 Yamaha Grizzly 600 4x4 ATV consist of the spare parts which gathered to be one unity and they're crucial to keep the Yamaha Grizzly 600 runs well. There are some parts that we should know because we can see how are they looks like if they're broken and we can get the Replacement of  those Yamaha Grizzly 600 Parts. In this section we are going to see these :

  • Yamaha Grizzly 600 Carburetor
  •  Yamaha Grizzly 600 Oil Filter
  •  Yamaha Grizzly 600 Air Filter
  •  Yamaha Grizzly 600 Battery
  •  Yamaha Grizzly 600 CDI Box
  •  Yamaha Grizzly 600 Seat


Yamaha Grizzly 600 Carburetor

The OEM Yamaha Grizzly 600 Carburetor is from Mikuni, And This is used in 1998, 1999, 2000, and 2001 Yamaha Grizzly 600.

Yamaha Grizzly 600 Carburetor
Yamaha Grizzly 600 Carburetor

And to know the Yamaha Grizzly 600 Carburetor, We also should know what's inside it. If it get troubled, we can tear it down and reassembling it. Here it is the Yamaha Grizzly 600 Carburetor Diagram.

Yamaha Grizzly 600 Carburetor Diagram
Yamaha Grizzly 600 Carburetor Diagram


Yamaha Grizzly 600 Air Filter


Yamaha Grizzly 600 Air Filter was located inside the Airbox/Cage to filter the dirt and dust from the air which is sucked by the carburetor. Without this Yamaha Grizzly 600 Air Filter, the dirty air will be collide with the gas and make such Burning crust inside the cylinder head.

Yamaha Grizzly 600 Air Filter
Yamaha Grizzly 600 Air Filter

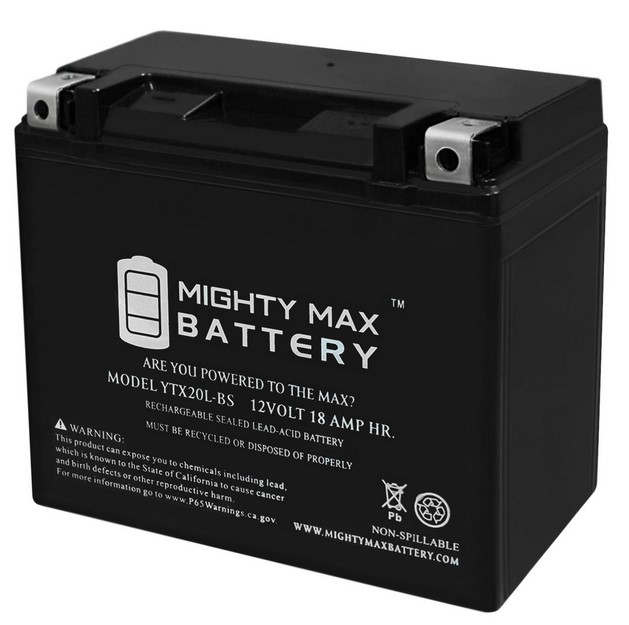

Yamaha Grizzly 600 Battery


Yamaha Grizzly 600 Battery was crucial to support all electricity stuff in Grizzly 600. The battery that works best is type YTX20L-BS. The Voltage is 12V and 18 AH amperage, And the size of this Yamaha Grizzly 600 Battery is 6.88 inches x 3.42 inches x 6.10 inches.

Yamaha grizzly 600 battery
Yamaha grizzly 600 battery

Yamaha Grizzly 600 Oil Filter


Yamaha Grizzly 600 Oil Filter
Yamaha Grizzly 600 Oil Filter



Yamaha Grizzly 600 Seat


Yamaha Grizzly 600 Seat
Yamaha Grizzly 600 Seat



Yamaha Grizzly 600 CDI BOX

Yamaha Grizzly 600 CDI BOX
Yamaha Grizzly 600 CDI BOX

Yamaha Grizzly 600 Engine


Yamaha Grizzly 600 has 595cc 4-stroke engine, Single cylinder air cooled. This is the well specs for 4x4 ATV That Yamaha Grizzly become one of the favorite ATV in this world.

The Old Yamaha Grizzly 600  ATV should have such problem in the engine and we need to figure it out. We need to know Yamaha Grizzly 600 Engine diagram To Rebuild, doing Engine removal or fix up the noise.

Yamaha Grizzly 600 Engine
