Yamaha TTR250, Legitimate 250cc Dirtbike By Years

Yamaha TTR250 By Years

The Yamaha TTR250 is a Good bike for beginner to practice with, it's not too powerful and it has perfect Handling, great off-road and on-road with maximum speed is 130km/h with original sprockets.

pretty Light, only 124kg easy to ride bulletproof. i highly recommend this motorbike if your looking to do enduro/trail riding.

I'm Going to show you the specification of each Yamaha TTR250 from Year by year Start from 1994 TTR250 until the recent time, 2019.

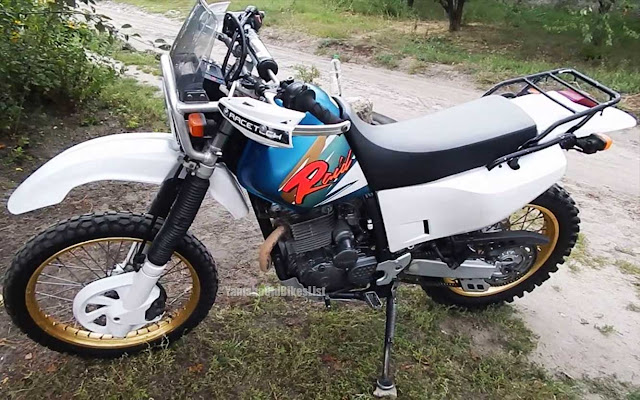

1994-1995 Yamaha TTR250 RAID

TTR250 Raid introduced in 1994.it's one of dirtbikers crush because of its nice specifications. 249cc 4-Stroke, 4 Valve DOHC Single Cylinder is fair size kind of engine but you can't underestimate it too. for detailed specs of Yamaha TTR250 Raid, just take a look the quotation below.

Brake Horse Power 33 BHP
Engine type 249cc, 4-stroke single, DOHC air-cooled
Starter Electric start and optional kickstarter
Power 30PS/8500RPM
Torque 2.8Kg/7000RPM
Seat Height 875mm
Length 2195mm
Width 835mm
Height 1255mm
Wheelbase 1410mm
Clearance 300mm
Dry Weight 120 kg
Economy 47km/litre at 60 kmph
Petrol tank capacity 16 litre
Tyre - Front 3.00 - 21 51P
Tyre - Rear 4.60 - 18 63P
Brakes Hydraulic single disc front and rear
Chain DK428VS3 134
Battery GT7B 12V 7AH
Sparking plug CR8E, U24ESR-N
Sparking plug - alternative CR9E, U27ESR-N

Bore x stroke 73.0 x 59.6
Compression 8.5:1
Engine oil 1.0 litre
Fork oil 625cc per leg
Carb bore 30mm
Carb float level 7.5 ~ 9.5
Main jet 145
Pilot jet 50
Needle clip Position 3
Idle RPM 1300 4 ~ 6% CO2
Valve clearance - In 0.09 ~ 0.17mm
Valve clearance - Ex 0.19 ~ 0.27mm

2001 Yamaha TTR250

After Years passed by, Yamaha TTR250 Comeback again after some development on the fashion and performance. here's the specs to compare with the 2001.

2001 Yamaha TTR250 Specs

DIMENSIONS
Length 85.8″
Height 50.2″
Width 33.4″
Weight 259 LBS.
Ground Clearance 11.4″
Wheelbase 56.4″
Seat Height 35.8″

ENGINE
Engine DOHC, Air Cooled, Four-Stroke
Displacement 249cc
Bore x Stroke 73 X 59.6mm
Compression Ratio 10.2:1
Carburetion 30mm Mikuni
Fuel Capacity 2.4 gallons

DRIVETRAIN
Transmission 6-Speed
Final Drive Chain

BRAKES/WHEELS/TIRES
Brakes Front: 245mm Disc
Rear: 220mm Disc
Tires Front: 80/100-21
Rear: 100/100-18

OPERATIONAL
Suspension Front: Telescopic Fork, 11.2″ of Travel
Rear: Single Shock, 11.2″ of Travel

OTHER
Colors Team Yamaha Blue/White

2001 Yamaha TTR250 Top Speed

Here's a Video Test o f a guy testing THE TOP SPEED Of 2001 Yamaha TTR250, Taken from a Youtube channel called Parasailing. He said it reach 150 km/h.

2003 Yamaha TTR250

Standing watch over the TT-R line up as the father of the line, the TT-R250 is the bike of choice for those riders ready to have hassle-free fun. With the reliability and comfort expected from Yamaha’s top-line products, smooth four-stroke power and virtually maintenance-free upkeep; the TT-R250 leads the way for riders looking to have some sporting fun. While the off-road racer prefers the WR models, recreational and novice riders prefer the smooth power of the TT-R line up.

Perfect for the casual rider looking to take it nice and easy while on a camping trip or just out for a weekend with the guys, the TT-R 250 features even, easy-to-handle power courtesy of its 249cc, four-valve, air-cooled, DOHC, four-stroke engine. Combined with its narrow chassis and plush suspension, riders can aggressively attack the trails one day and causally play ride with the family the next.

2003 Yamaha TTR250 Specs

There must be specs changes in each Year model. check this 2003 Yamaha TTR250 detailed specs to compare with the previous model of Yamaha TTR 250

Engine Specifications
Type: 249cc, air-cooled, 4-valve, DOHC, four-stroke
Bore & Stroke: 73 x 59.6mm
Compression ratio: 10.2:1
Carburetor: 30mm Keihin

Transmission Specifications
Type: 6-speed with manual clutch

Chassis Specifications
Front suspension: Telescopic fork, 11.02" of travel
Rear suspension: Single shock, link-type, w/adjustable preload, 11.02" of travel
Front brake: 245mm Disc
Rear brake: 220mm Disc
Front tire size: 80/100-21
Rear tire size: 100/100-18

Capacities
Fuel tank: 2.7 gallons

Dimension and Dry Mass
Overall length: 82.5"
Overall width: 32.9"
Overall height: 49.6"
Wheelbase: 55.3"
Ground clearance: 12"
Seat height: 36"
Dry mass: 249 lbs.

2003 Yamaha TTR250 Top Speed

Again, i'm surfing in Youtube to find some guys who dare to test Yamaha TTR250 2003 Model's Top Speed. and i found this one guy from a channel named The Goshe who rides 2002 Yamaha TTR250 Which probably Close with 2003 ones.
